Automation API

Overview

Two surfaces, same state#

App Intents are the native macOS Shortcuts surface. Drag them into a Shortcut, speak them to Siri (via a named Shortcut), or wire them into a Focus Filter. They get typed parameters, structured return values, and proper error dialogs when something goes wrong. Require macOS 13 (Ventura) or later.

The lyra:// URL scheme is the lowest-common-denominator surface for everything else: Stream Deck's System » Open action, Keyboard Maestro's Open URL, Raycast, AppleScript's open location, open "lyra://..." from a shell. Action URLs are fire-and-forget; read URLs (new in v1.5) return live state via x-success callbacks.

Lyra's state is single-sourced: both surfaces read and write through the same underlying app state. A volume change via Shortcuts, the menu, or the URL scheme is the same operation; the surfaces don't see a parallel reality.

Trying it from the shell

open "lyra://reference/2"
open "lyra://volume/set?tapered=0.4"
open "lyra://mute/toggle"

# Read with callback - prints whatever Raycast does with the result
open "lyra://state?x-success=raycast://run?id=announce"

Unknown URLs are logged to the console and silently ignored. Action URLs require Lyra to be running and your Apollo to be reachable (Mixer Engine connected); otherwise Lyra fires x-error with mixer_disconnected, or silently drops the URL if no x-error was provided.

App Intents

The eleven intents#

All eleven intents are gated on macOS 13 (Ventura) or later. They live under Lyra in the Shortcuts app's action library. Every intent returns structured values - in Shortcuts, use Get Property of <Lyra State> (or <Reference Slot>, <Monitor Level>) to extract specific fields for subsequent steps. No URL parsing, no JSON decode.

On macOS 12 (Monterey), Lyra runs identically except the Shortcuts surface is hidden. App Intents itself requires macOS 13+.

State (read)

Monitor (write)

Reference Levels (write)

Notes & gotchas

• Set Monitor Level accepts percent, not dB. UA Mixer Engine's tapered curve isn't a linear function of dB; a dB-set would mislead anyone calibrating against an SPL meter. A dB-scale set lands alongside a planned lyra://volume/set?db=… URL endpoint in a future release.
• Save Current Level to Reference Slot clears the slot's prior dB SPL calibration. The stored SPL was measured against the old tapered value and no longer applies. If you've calibrated a slot via Audita and don't want to lose that, don't aim this intent at it. Re-calibrate via Audita afterwards to restore the dB SPL display.
• Cold launch. If you fire an intent while Lyra isn't running, macOS launches Lyra in the background and runs the intent on the freshly-constructed app. There's a sub-second window during launch where intents return "Lyra hasn't finished launching yet"; Shortcuts surfaces this as a soft failure. Build a one-second delay before the intent if you're chaining off a wake event.

Spotlight

App Shortcuts#

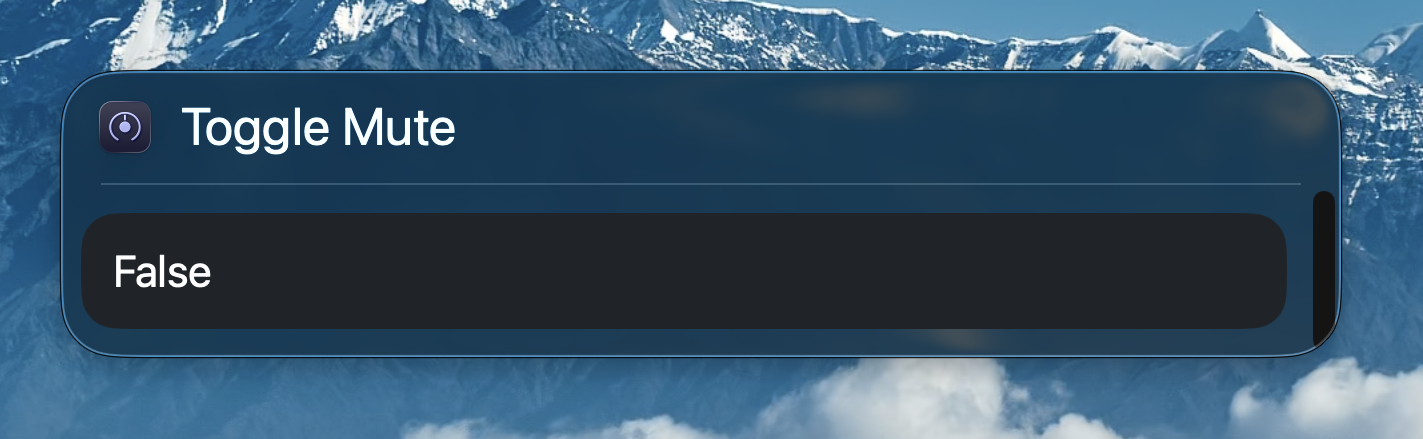

The most-used intents are pre-wired as App Shortcuts; they show up in Spotlight without you building anything first. Open Spotlight (⌘Space) and type phrases like:

• "Toggle mute in Lyra"

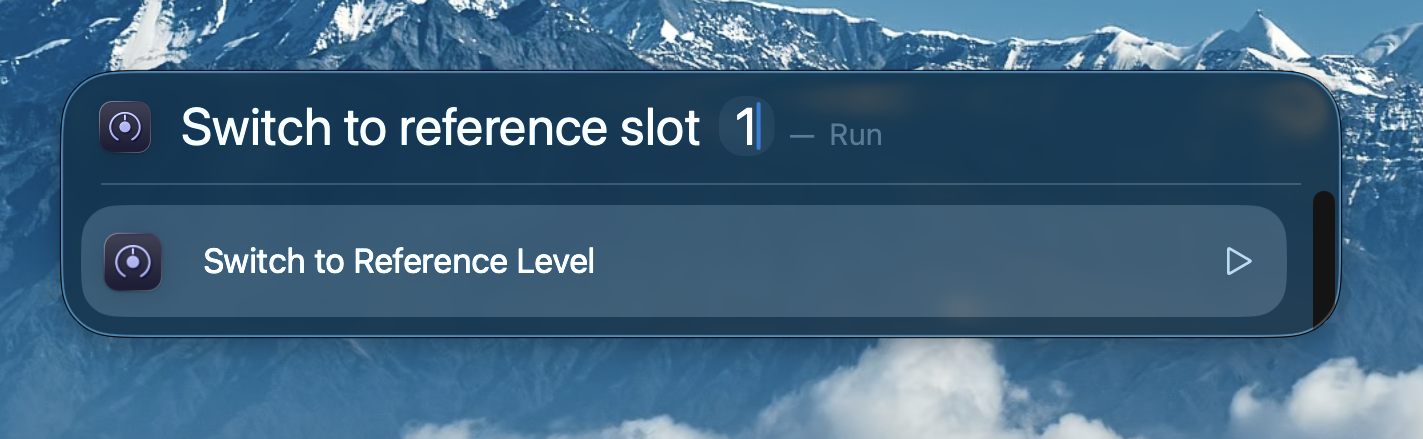

• "Switch reference level in Lyra"
• "Set monitor level in Lyra"
• "What's the monitor level in Lyra?"
• "Get Lyra state"

Spotlight surfaces the action directly; press Enter to run it. The full list is in Shortcuts → App Shortcuts → Lyra.

Siri

Voice via named Shortcuts#

Saying App Shortcut phrases directly to Siri does not work on macOS as of macOS 26. Apple's natural-language matcher for App Shortcuts (Flexible Matching) is iOS / Catalyst-only; native macOS apps like Lyra fall through with "Sorry, I don't understand." This isn't a Lyra-specific issue; it affects every native macOS App Intents app on the current platform.

The reliable Siri path on macOS: create a named Shortcut in Shortcuts.app and ask Siri to run it by name.

1. Open Shortcuts.app → New Shortcut
2. Drop in the Lyra action you want (e.g. Toggle Mute), or a chain of several
3. Name the shortcut something Siri can hear cleanly: "Mute the monitor", "Mix level", "Studio quiet"
4. Save

Then say to Siri: "Mute the monitor" (or whatever you named it). Siri matches the shortcut name and dispatches the chain. The same pattern works for multi-step routines, e.g. a "Listening session" shortcut that switches reference level and dims and silences notifications from one Siri phrase.

Focus Filter

Switch reference level on Focus#

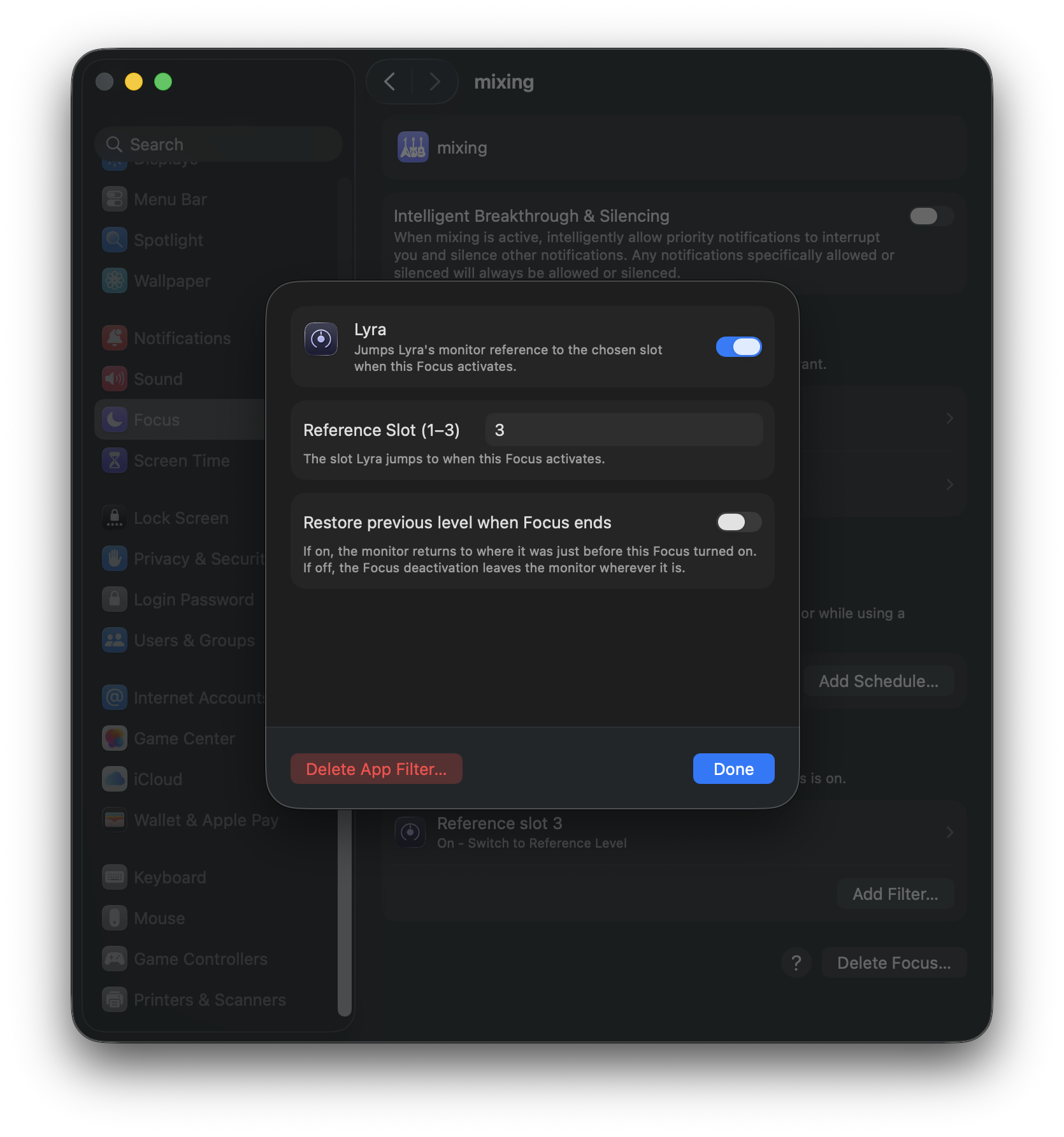

System Settings → Focus → pick a mode → Add Filter → Lyra → Switch to Reference Level → pick a slot. From that point on, enabling the Focus jumps Lyra's monitor to that slot.

The common setup: a "Mixing" Focus configured to jump Lyra to slot 2 ("Mix") and silence non-DAW notifications, and a "Mastering" Focus that switches to slot 3.

On deactivation: do nothing, or restore the prior level. The Focus Filter has a "Restore previous level when Focus ends" toggle (off by default). When off, deactivating the Focus leaves the monitor wherever the filter put it. When on, Lyra remembers the live tapered position from the moment of activation and rolls back to it when the Focus turns off. Use the toggle when you want a Focus session to be a temporary monitor change ("Mixing → slot 2 for the session → back to whatever I had before"); leave it off when you want the Focus to permanently set a level you'll keep until you change it manually.

The restore target is held in memory only. If you quit Lyra mid-Focus, the deactivation finds no cached level and the monitor stays put.

If the Mixer Engine isn't reachable when a Focus activates (Apollo unplugged, daemon off), the Focus still enables and Lyra logs the skipped jump; the filter never blocks the system Focus state.

Chaining

x-callback-url#

Two optional query parameters on every endpoint:

Example: action chain

Set the monitor to tapered=0.4, then trigger a Raycast script. Lyra appends what it knows about the new state to your success URL:

# What you fire:
lyra://volume/set?tapered=0.4&x-success=raycast://run?id=announce

# What Raycast receives (after the set completes):
raycast://run?id=announce&db=-12.34&result=ok&tapered=0.4000

Example: read chain

Read the full state dictionary into a Shortcut. The Shortcut receives every key as a URL query item - use Get value from URL for each one you care about.

lyra://state?x-success=shortcuts://run-shortcut?name=PostMix

URL-encoding the callback

Your x-success / x-error URLs are themselves embedded as query values inside the lyra:// URL. If your callback contains its own =, &, or spaces, percent-encode the whole callback URL before pasting it in - otherwise the outer URL parser will split your callback at the first & and you'll lose everything past it.

# Wrong - the outer parser sees three top-level params on the lyra:// URL:
lyra://state?x-success=shortcuts://run-shortcut?name=Post&arg=foo

# Right - the callback URL is encoded as a single query value:
lyra://state?x-success=shortcuts%3A%2F%2Frun-shortcut%3Fname%3DPost%26arg%3Dfoo

Shortcuts, Raycast, and Keyboard Maestro all expose this as "URL-encode" or "Percent encode" - apply it once when building the outer URL.

Endpoints

Volume#

Endpoints

Toggles#

Endpoints

Reference Levels#

Endpoints

State#

Errors

Error codes#

When an endpoint fails and an x-error URL was supplied, Lyra opens it with error_code and error_message appended. Codes are stable strings - branch on these, not on the human-readable message (which may change between releases).

Examples

Integration examples#

Apple Shortcuts - read state and post to Slack

Lyra is queried for its full state, the Shortcut pulls out the keys it cares about, formats a one-liner, and posts it to a Slack incoming webhook.

Shortcut: "Post current mix to Slack"

1. Open URLs → lyra://state?x-success=shortcuts%3A%2F%2Frun-shortcut%3Fname%3DPostMix-Continue

   # lyra:// will fire `shortcuts://run-shortcut?name=PostMix-Continue&db=...&tapered=...&...`

--- Second shortcut, "PostMix-Continue":

1. Get value for "db" in Shortcut Input
2. Get value for "slot_name" in Shortcut Input
3. Get value for "muted" in Shortcut Input
4. Text: "Mixing at [db] dB (slot: [slot_name], muted: [muted])"
5. Get Contents of URL → POST https://hooks.slack.com/… with the text

Why two shortcuts? Shortcuts can't directly receive callback parameters into the same shortcut that fired the URL. The pattern is fire-from-A, receive-in-B. Pass name=B in the callback and run B from the chain.

Stream Deck - three K-System buttons

Three Stream Deck buttons, each calling a different Reference Level slot. Use the built-in System » Open action - no plugin needed.

Button 1 (K-14): System » Open → lyra://reference/1
Button 2 (K-20): System » Open → lyra://reference/2
Button 3 (K-Free): System » Open → lyra://reference/3

For more positions than three, use lyra://volume/set?tapered=N on each button - the Stream Deck holds the preset list, Lyra just executes.

Keyboard Maestro - fade to a target level over 2 seconds

Lyra doesn't have a built-in fade endpoint - every action is instantaneous. Synthesize a fade by stepping volume/set in a Keyboard Maestro loop.

Macro: "Fade to 0.4 over 2 s"

Set Variable startTapered to 0.7        # read it first if you want dynamic
Set Variable targetTapered to 0.4
Set Variable steps to 40                  # 20 Hz update rate

For each i in 1..steps:
    Calculate t = startTapered + (targetTapered - startTapered) * (i / steps)
    Open URL  lyra://volume/set?tapered=%t%
    Pause     0.05 s

Read the starting position dynamically with lyra://volume/get?x-success=… if you want the fade to start from wherever the knob currently is. Keep the step rate at ~20 Hz - faster and you'll hammer the Mixer Engine TCP socket.

Notes

Notes & gotchas#

Apollo must be reachable

All action endpoints (and volume/get, reference/current) require UA Mixer Engine to be running and Lyra's TCP client to be connected. If the daemon isn't up, the action is silently dropped - or, if you passed x-error, you'll get mixer_disconnected. The lyra://state endpoint is the exception: it succeeds even when disconnected, and reports mixer_connected=false in its response so you can branch on it.

Reads are no-ops without x-success

lyra://volume/get, lyra://reference/current, and lyra://state have nowhere to send data unless you give them a callback URL. Calling them without one is harmless - they're logged and ignored - but they won't do anything either.

The db key is the Apollo's meter, not SPL

The db field returned by reads reflects UA's CRMonitorLevel property, which is the dB value of the monitor knob position on the Apollo - typically -96 dB to 0 dB on Apollo Twin X. It is not a sound pressure level. To estimate SPL for a calibrated slot, do SPL ≈ db + slot_dbspl (only meaningful when you've calibrated that slot via Audita's target-level routine).

No fade, no smoothing, no queueing

Every endpoint is fire-and-forget. There's no built-in ramp on volume/set, no command queue, no replay if the mixer disconnects mid-flight. If you need smoothed behaviour, build it in your launcher (see the Keyboard Maestro example above).

x-callback-url is opt-in

If you don't supply x-success / x-error, the endpoint behaves exactly as it did pre-v1.5: silent on success, silent on failure. Existing Stream Deck and Shortcuts setups continue to work unchanged - the callback layer is additive.

The slot_dbspl field is metadata, not a measurement

When a slot was written via Audita's "Send to Lyra…", slot_dbspl carries the dB SPL Audita measured at that monitor position. Lyra does not re-measure or verify it - it's a label. If you change your room, speakers, or distance, re-run Audita's calibration to refresh the value.
